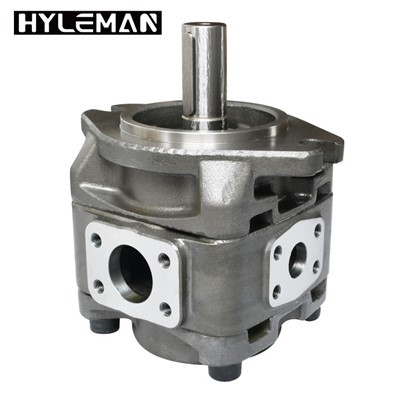

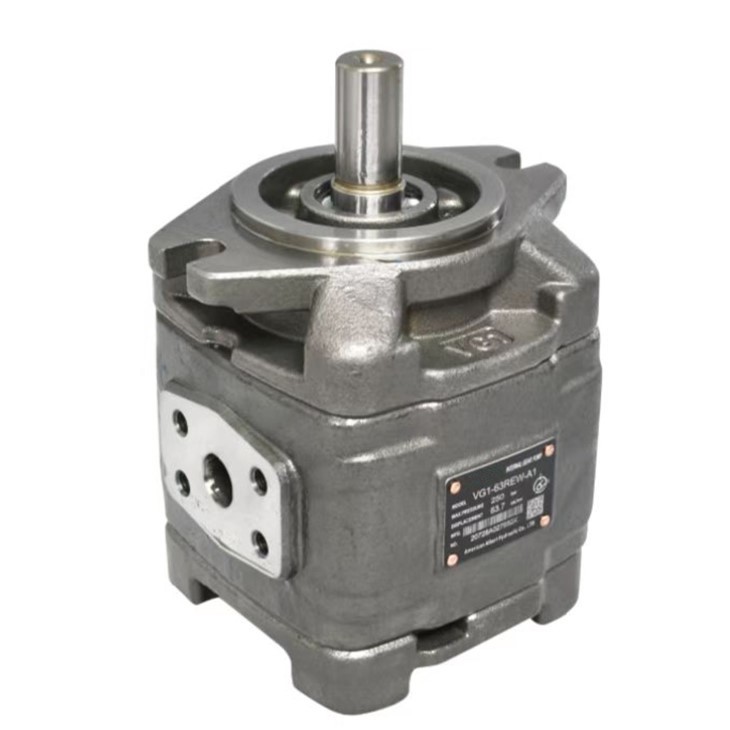

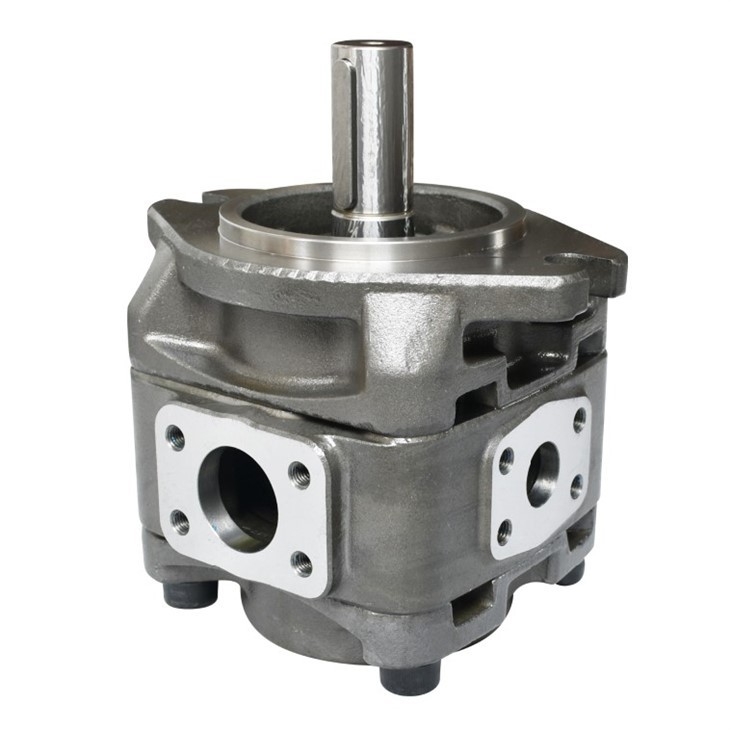

Hyleman hg 0 väike hüdraulilise käigu pump
Hyleman hg 0 väike hüdraulilise käigu pump
Omadused
Saadaolev mudel
Hg 0 võrdne PGH3 -ga, HG1 võrdne PGH1, HG2 võrdne PGH3 -ga
Üksikud pumbad: hg 0-8, 10,13,16,20; Hg 1- 25, 32, 40, 50, 63; Hg 2-80, 100,125,145,160

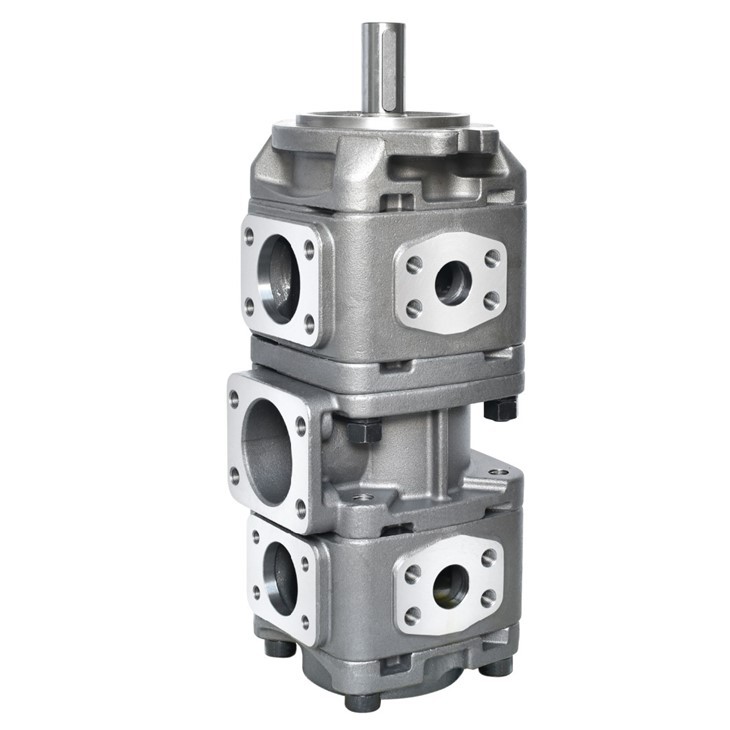

Topeltpumbad: HG21,32, 31- (25,32, 40, 50, 63, 80,100,125,145,160), (25,32, 40, 50, 63, 80,100, 125,145,160)
Üksikasjalikud pildid
Mudeli kirjeldus
| Suurus | Disp. CC/REV | Rõhuriba | Pöörlev kiirus r/min | |||
| Hinnatud | Maksimaalne | Maksimaalne | Min | |||
| Hg 0-10-01 r-vpc | 10 | 10 | 315 | 350 | 3000 | 600 |
| Hg 0-13-01 r-vpc | 13 | 13.3 | 315 | 350 | 3000 | 600 |
| Hg 0-16-01 r-vpc | 16 | 16 | 315 | 350 | 3000 | 600 |
| Hg 0-20-01 r-vpc | 20 | 20 | 315 | 350 | 3000 | 600 |
| Hg 1-25-01 r-vpc | 25 | 25.3 | 315 | 350 | 3000 | 200 |
| Hg 1-32-01 r-vpc | 32 | 32.7 | 315 | 350 | 3000 | 200 |
| Hg 1-40-01 r-vpc | 40 | 40.1 | 315 | 350 | 3000 | 200 |
| Hg 1-50-01 r-vpc | 50 | 50.7 | 315 | 350 | 3000 | 200 |
| Hg 1-63-01 r-vpc | 63 | 53.7 | 315 | 350 | 3000 | 200 |
| Hg 2-80-01 r-vpc | 80 | 81.4 | 315 | 350 | 3000 | 200 |
| Hg 2-100-01 r-vpc | 100 | 100.2 | 315 | 350 | 3000 | 200 |
| Hg 2-125-01- vpc | 125 | 125.3 | 315 | 350 | 3000 | 200 |
| Hg 2-160-01- vpc | 160 | 162.8 | 210 | 260 | 3000 | 200 |
Veel mudeleid:
|
Hg 0-8-01 r-vpc |
Hg 0-10-01 r-vpc |
Hg 0-13-01 r-vpc |
Hg 0-16-01 r-vpc |
|
Hg 1-25-01 r-vpc |
Hg 1-32-01 r-vpc |
Hg 1-40-01 r-vpc |
Hg 1-50-01 r-vpc |
|
Hg 1-63-01 r-vpc |
Hg 0-20-01 r-vpc |
Hg 2-80-01 r-vpc |
Hg 2-100-01 r-vpc |
|
Hg 2-125-01 r-vpc |
Hg 2-160-01 r-vpc |
Hg 21-80-25-01 r-vpc |
Hg 22-160-80-01 r-vpc |
|
Hg 10-63-20-01 r-vpc |
Hg 10-63-16-01 r-vpc |
Hg 10-63-13-01 r-vpc |
Hg 10-63-10-01 r-vpc |
|
Hg 10-63-8-01 r-vpc |
Hg 10-50-8-01 r-vpc |
Hg 10-40-8-01 r-vpc |
Hg 10-32-8-01 r-vpc |
|
Hg 10-50-20-01 r-vpc |
Hg 10-50-16-01 r-vpc |
Hg 10-50-13-01 r-vpc |
Hg 10-50-10-01 r-vpc |
|
Hg 10-40-20-01 r-vpc |
Hg 10-40-16-01 r-vpc |
Hg 10-40-13-01 r-vpc |
Hg 10-40-10-01 r-vpc |
|
Hg 10-32-20-01 r-vpc |
Hg 10-32-16-01 r-vpc |
Hg 10-32-13-01 r-vpc |
Hg 10-32-10-01 r-vpc |
|
Hg 10-25-20-01 r-vpc |
Hg 10-25-16-01 r-vpc |
Hg 10-25-13-01 r-vpc |
Hg 10-25-10-01 r-vpc |
|
Hg 10-25-8-01 r-vpc |
Hg 11-63-25-01 r-vpc |
Hg 11-63-63-01 r-vpc |
Hg 11-63-50-01 r-vpc |
|
Hg 11-50-50-01 r-vpc |
Hg 11-50-40-01 r-vpc |
Hg 11-63-40-01 r-vpc |
Hg 11-63-32-01 r-vpc |
|
Hg 11-50-32-01 r-vpc |
Hg 11-50-25-01 r-vpc |
Hg 21-160-25-01 r-vpc |
Hg 21-125-25-01 r-vpc |
|
Hg 21-160-63-01 r-vpc |
Hg 21-160-50-01 r-vpc |
Hg 21-160-40-01 r-vpc |
Hg 21-160-32-01 r-vpc |
|
Hg 21-125-63-01 r-vpc |
Hg 21-125-50-01 r-vpc |
Hg 21-125-40-01 r-vpc |
Hg 21-125-32-01 r-vpc |
|
Hg 21-80-63-01 r-vpc |
Hg 21-80-50-01 r-vpc |
Hg 21-80-40-01 r-vpc |
Hg 21-80-32-01 r-vpc |
|
Hg 22-160-160-01 r-vpc |
Hg 22-160-125-01 r-vpc |
Hg 22-160-100-01 r-vpc |
|
